HD Plasma Cutting Service

We provide precision CNC plasma cutting services for carbon and mild steel across the UK, delivering highly accurate and detailed components in material thicknesses from 6mm up to 60mm plate. Plasma cutting is an efficient and cost-effective solution for profile cutting, making it ideal for both thinner and thicker steel applications. With plasma cutting beds capable of handling up to 16 metres in cutting length and 5 metres in cutting width, we can accommodate everything from small, intricate parts to large-scale plasma cut profiles.

As specialists in HD plasma cutting, our facility is equipped with the exclusive Viper Twin Head XPR460 plasma cutting machine, featuring an impressive 16,000mm x 5,000mm cutting bed. This is complemented by a 300 Amp single-head machine with a 10,000mm x 2,500mm bed and a Gemini machine with a 7,000mm x 2,500mm bed. This combination of advanced CNC plasma cutting equipment allows us to efficiently process both heavy and light plate work while maintaining consistent accuracy and repeatability.

Whether you require a one-off prototype, a small batch, or high-volume repeat production, our advanced plasma cutting technology delivers parts precisely to specification. Operating to ISO 9001 quality standards and UKCA Execution Class 4 certification, we ensure every plasma cut component meets the highest industry requirements and performs exactly as intended for your project.

Request A Quote

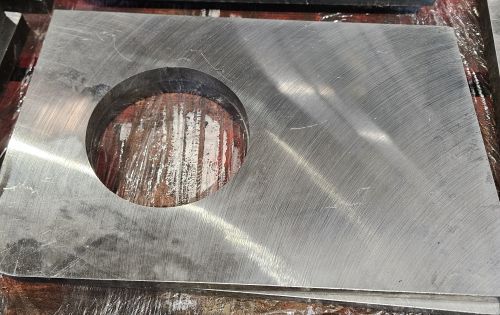

Smooth side of steel circles that were plasma cut.

One of RMP Products plasma cutting projects.

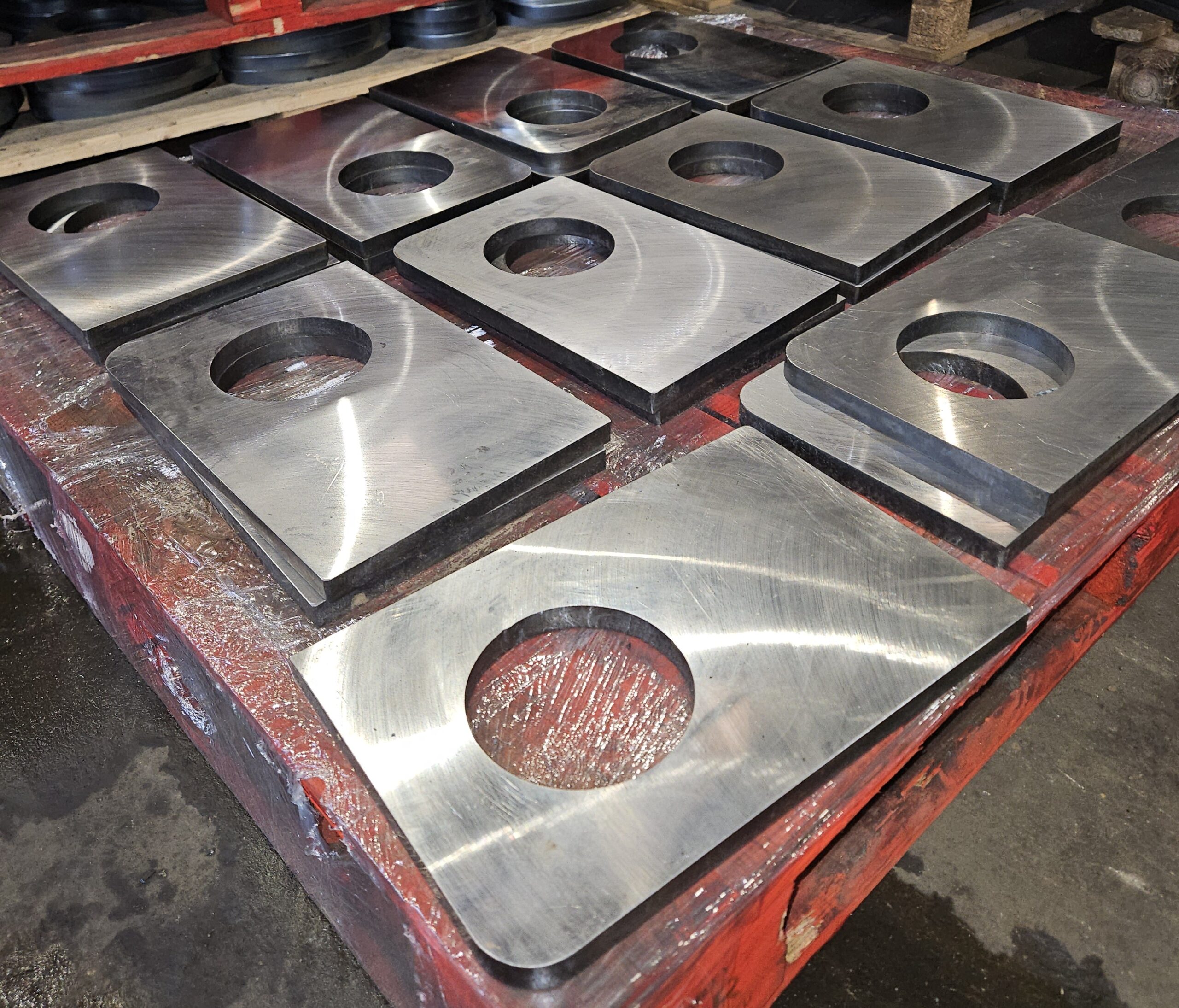

Steel circles cut from plasma cutting machine.

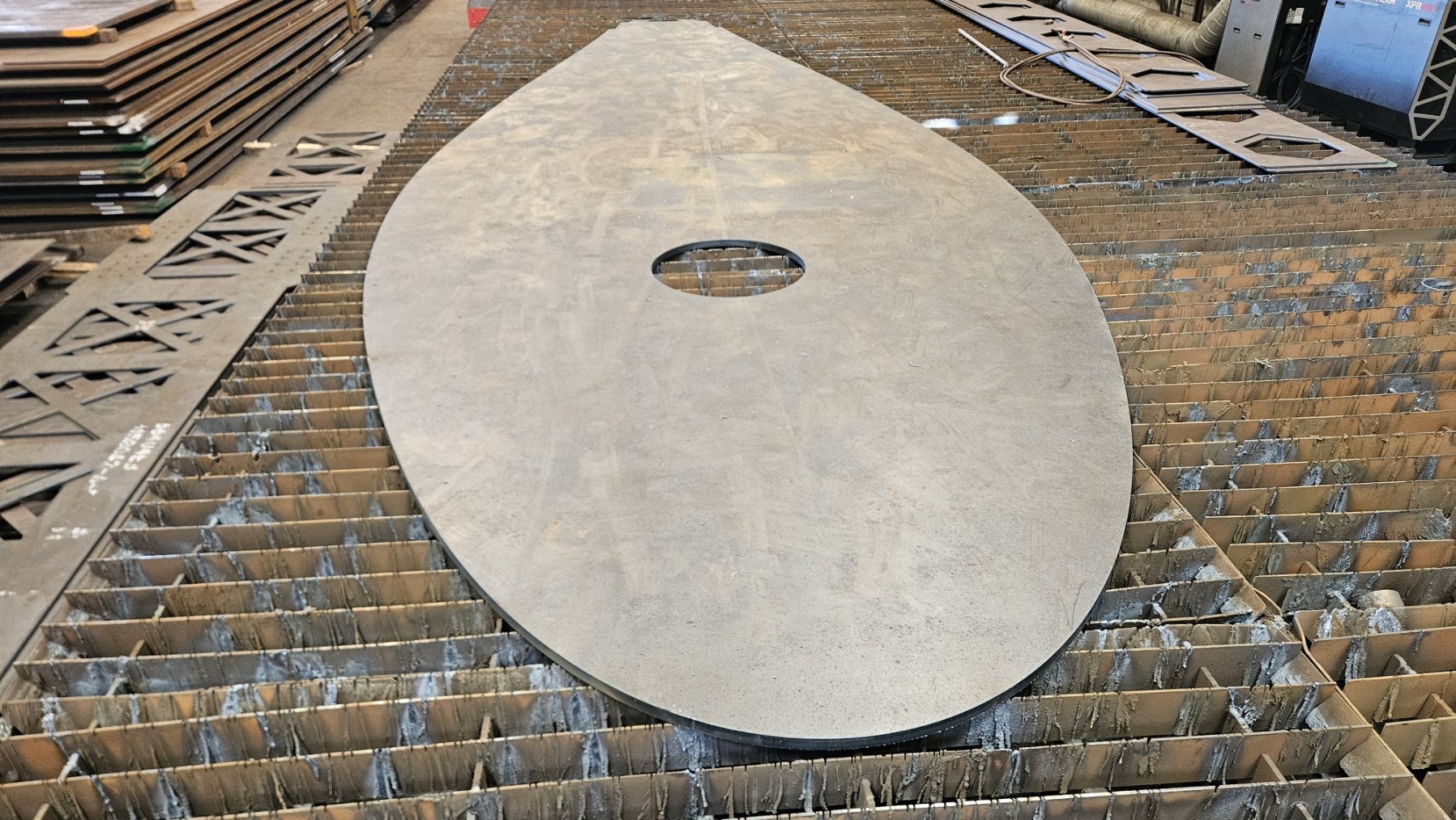

Highlighting a big plasma cutting job we completed for TM.

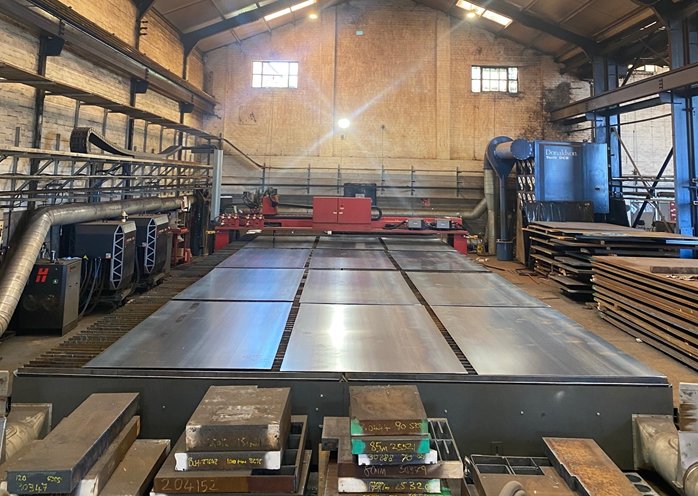

Here's a full bed on our XPR460 viper plasma cutting machine of metal sheets that were plasma cut.

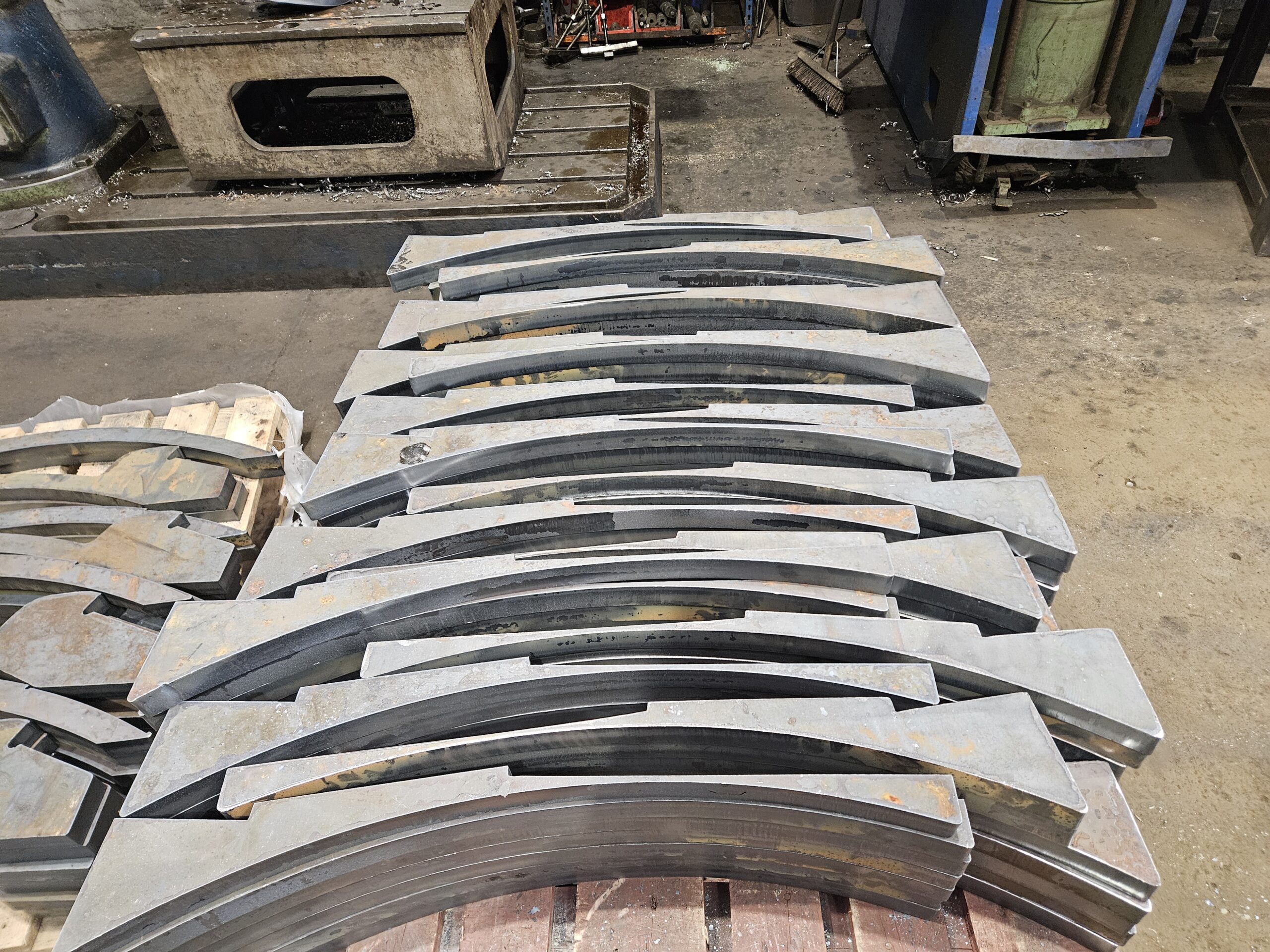

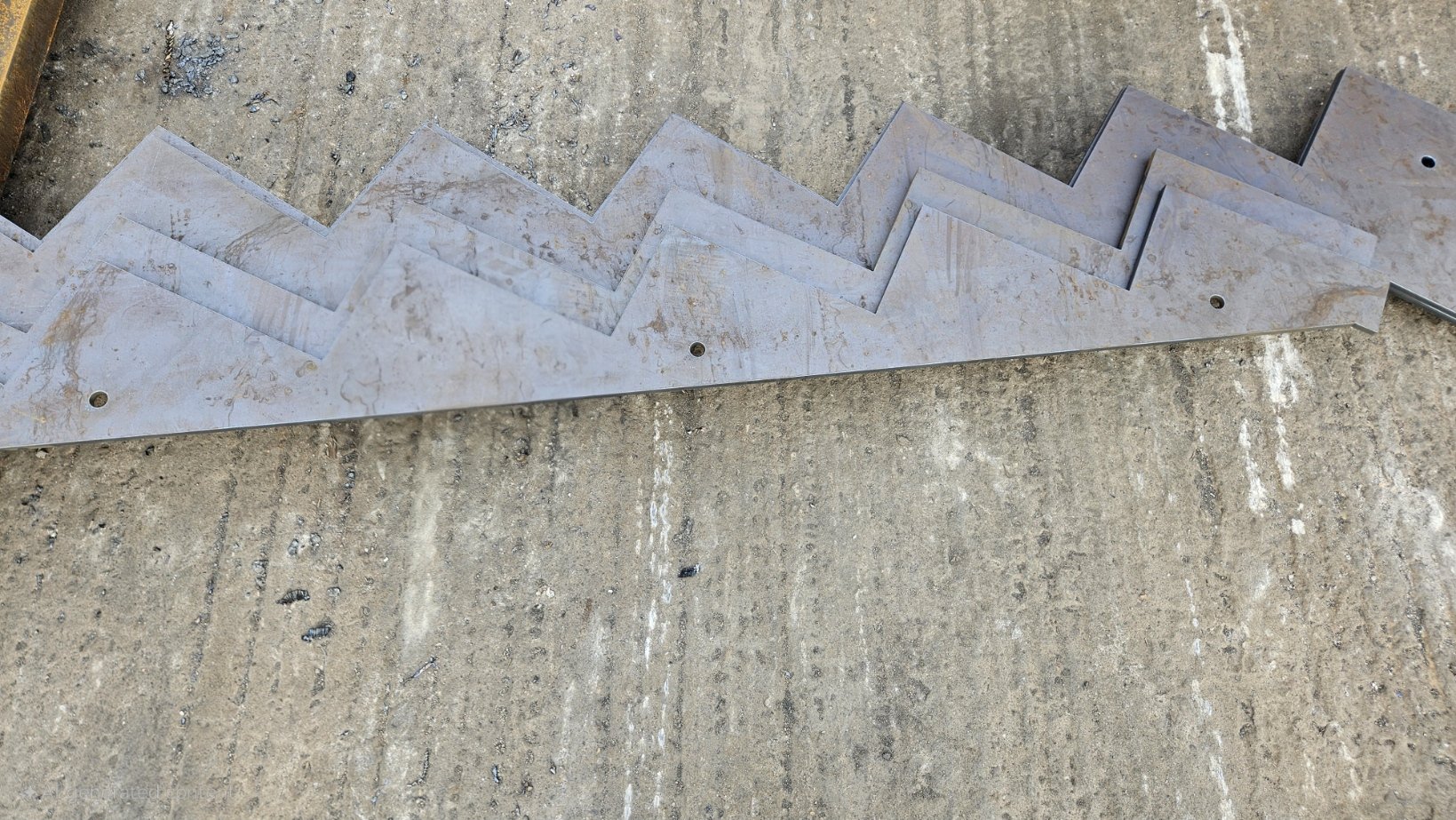

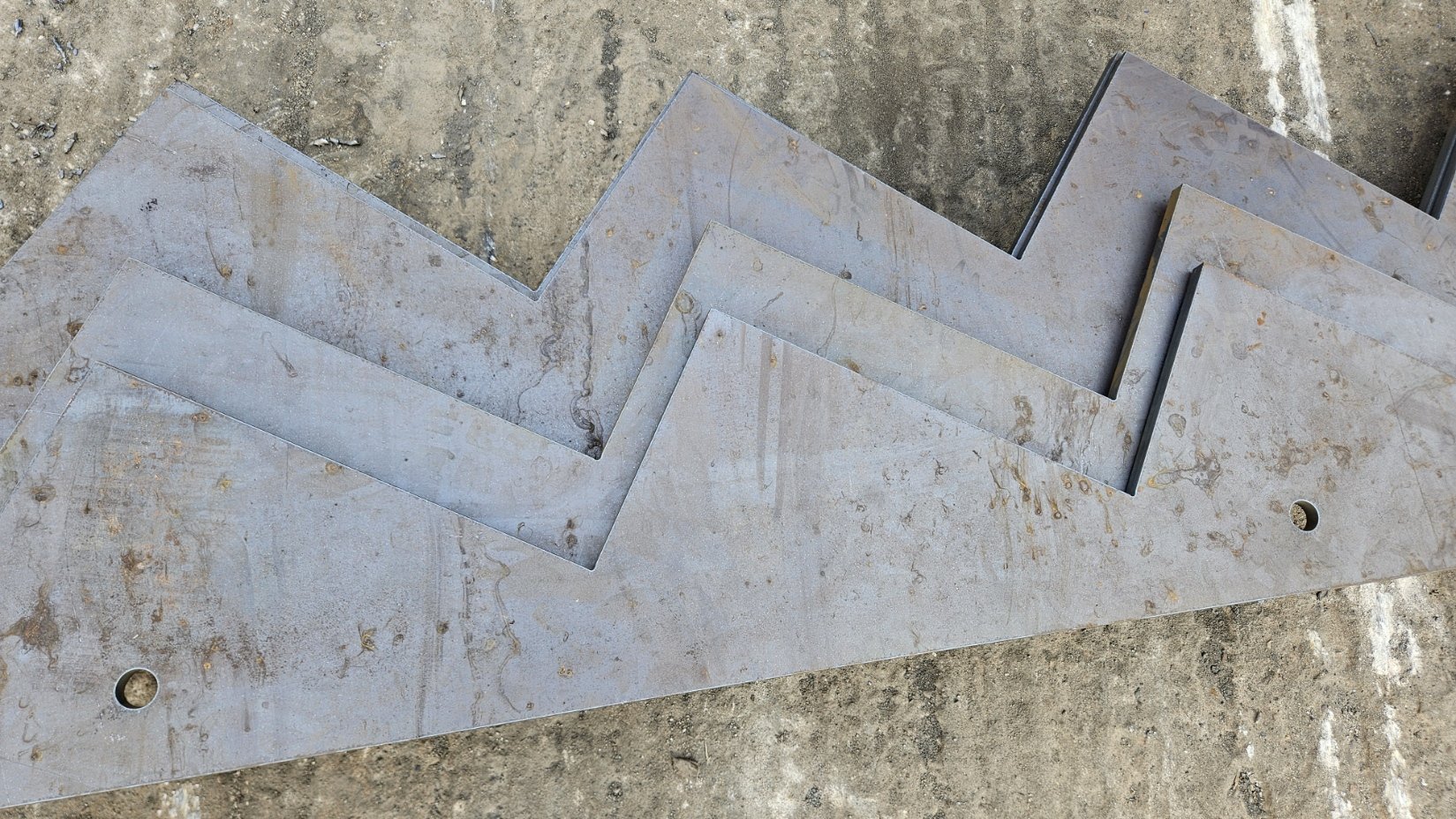

Here are some steel stringers we cut out through plasma cutting.

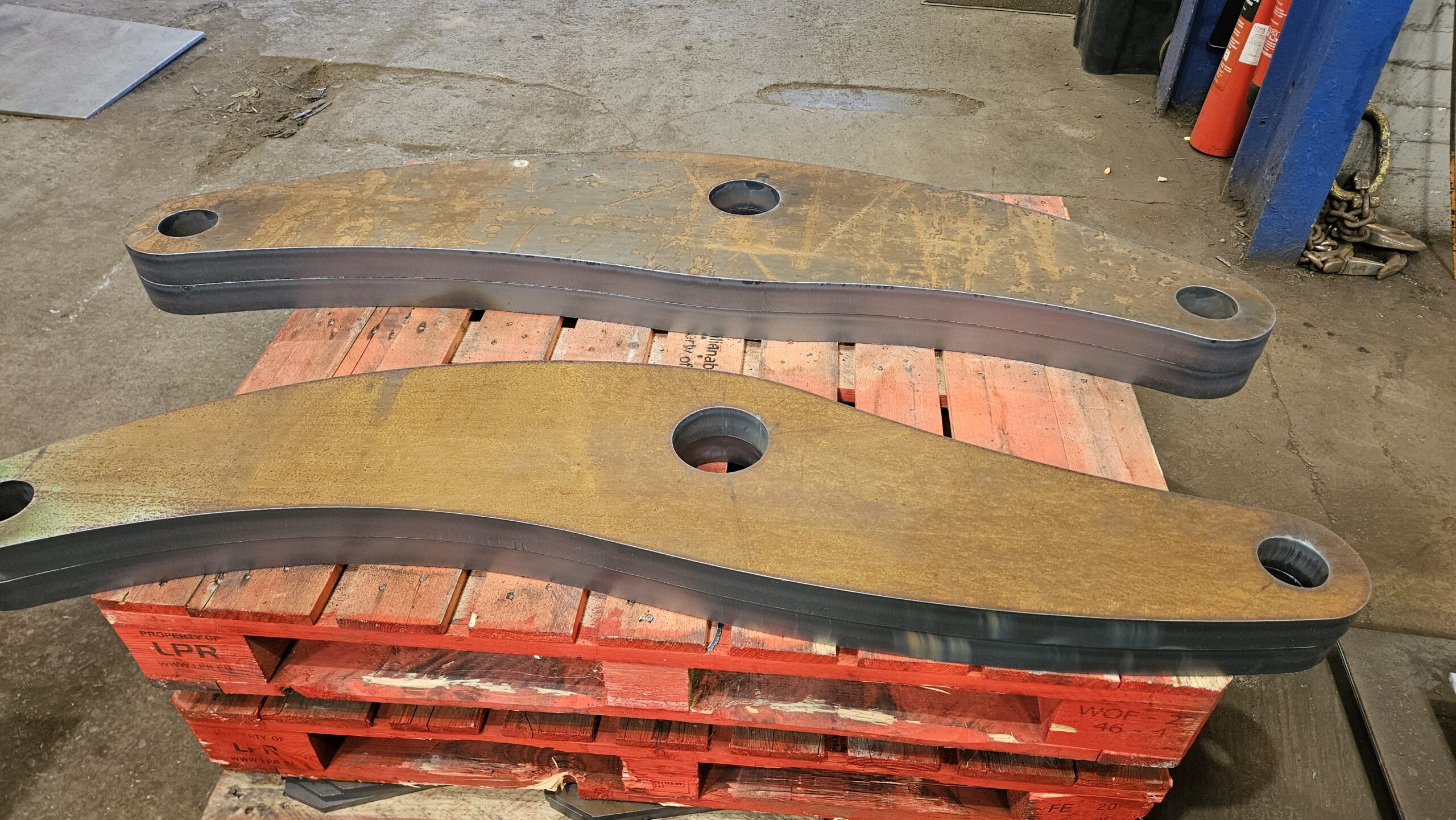

Looking at a plasma cutting project that we cut with our twin head plasma cutter.

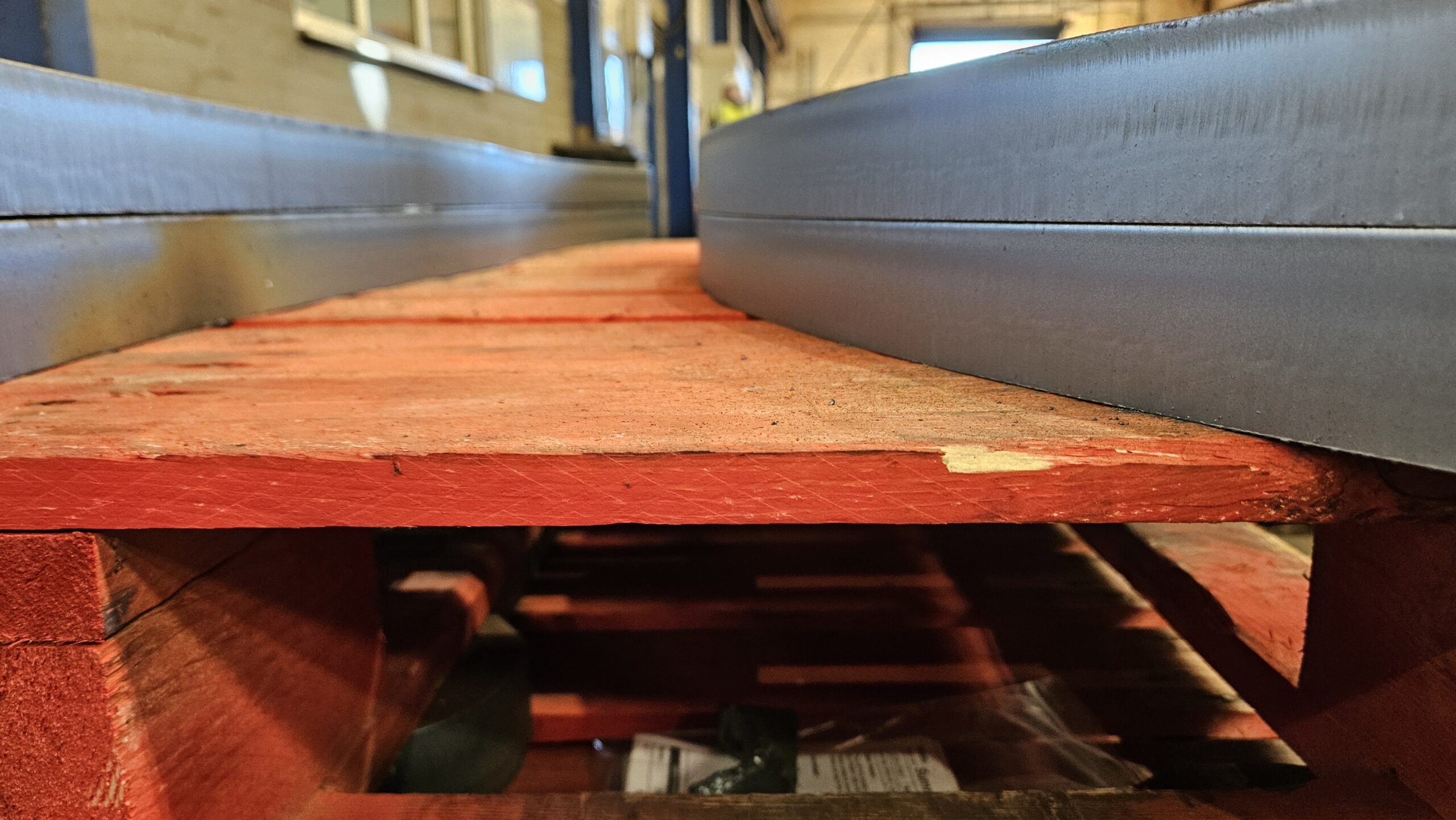

Showcasing the smooth edges of steel we plasma cut.

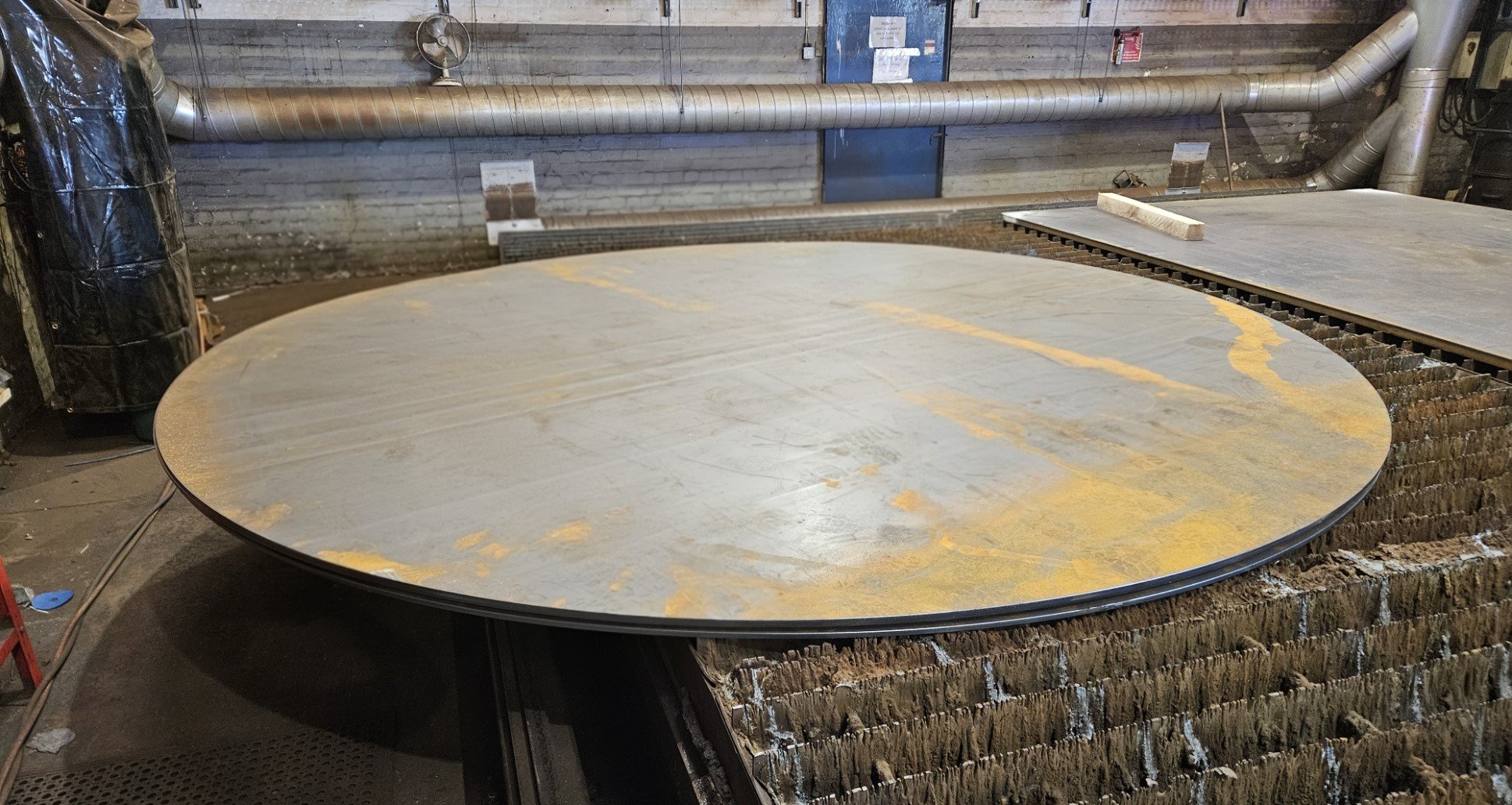

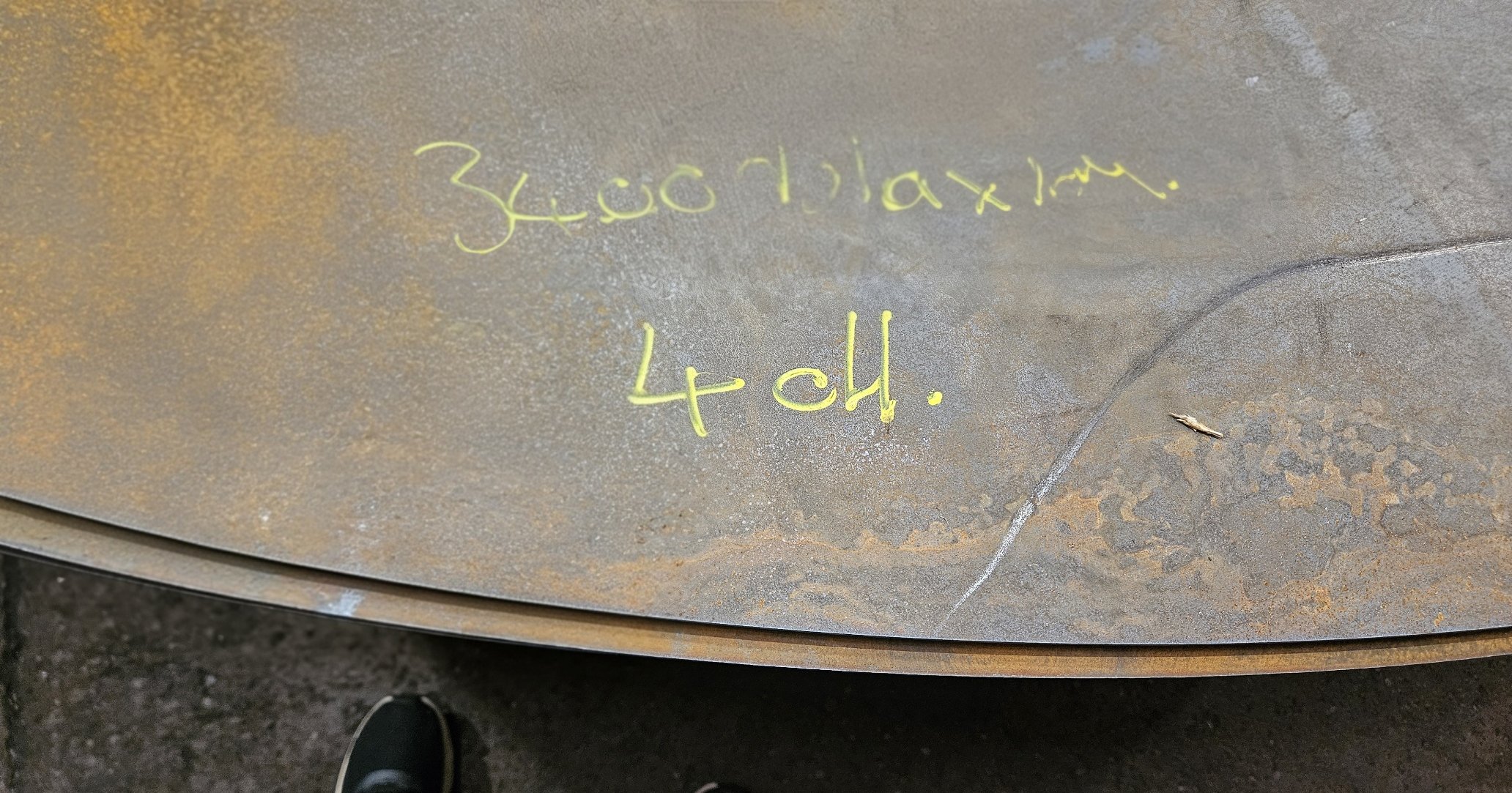

Highlighting three metre discs we cut through plasma cutting.

A plasma cutting project RMP Products have worked on, cutting steel into muskets.

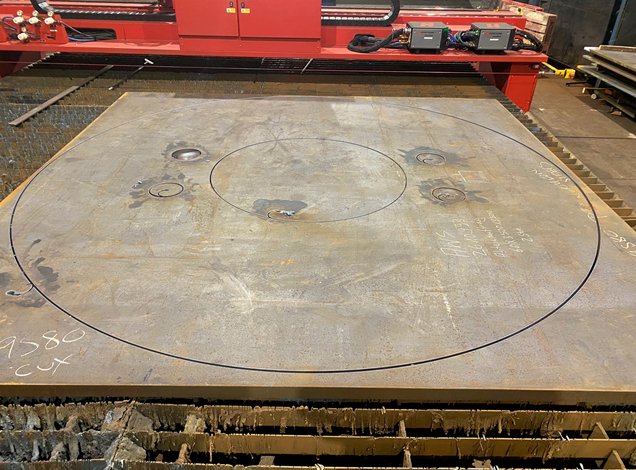

Highlighting a 3m steel plate we plasma cut for a project.

Over 30 Years of Expertise in Plasma Cutting

Offering high-precision CNC plasma cutting services for steel components with fast turnaround, certified quality and expert support across the UK.

Benefits of Plasma Cutting

Exceptional Cutting Speed: Plasma cutting operates significantly faster than traditional methods such as flame cutting, with cutting speeds up to four times quicker. This increased efficiency helps reduce project lead times and lowers overall labour costs.
Versatility in Material & Thickness: Capabilities of cutting a range of electrically conductive metals from mild steel cutting to aluminium and copper. It performs particularly well when cutting medium thickness plates, with capacities of up to 60mm.
High Cut Quality: Modern high definition plasma cutting systems deliver excellent accuracy, achieving tolerances as tight as plus or minus 0.25mm. This results in clean, sharp and narrow cuts with a consistently high finish.
Cost-Effectiveness: Cost Effectiveness: For thicker materials, plasma cutting is often more economical than laser or waterjet cutting, particularly for material thicknesses above approximately 15mm. Plasma cutters also work directly from CAD drawings, optimising material usage and helping to reduce waste.

Why Choose RMP Products for Plasma Cutting Services

One-Stop Shop

To complement our plasma cutting services, parts can also be machined, shotblasted or chamfered to suit your specific requirements.

24/7 Service

Our plasma cutting service operates around the clock, seven days a week, ensuring you receive your HD plasma cut parts as quickly as possible with a maximum turnaround of fourteen days.

Complex Geometries

Working directly from CAD drawings, plasma cutting offers the capability to produce complex shapes, intricate details and highly precise automated cuts, ensuring accuracy and consistency across every project.

Certifications & Quality Guaranteed

We are ISO 9001 certified and fully compliant with UKCA Execution Class 4, demonstrating our commitment to the highest manufacturing standards. Every plasma cut part is thoroughly inspected to ensure it meets your industry requirements.

Plasma Cutting Project (JCB)

Overview

JCB needed a faster and more cost effective way to produce large telehandler side plates measuring 5 metres by 1.5 metres. Their existing process required multiple operations across different machines, leading to long lead times and high handling costs.

Our Solution

Using our Gemini combined machining and plasma cutting system, we completed every stage of the process in one setup. All holes were machined and tapped, the plate profile was plasma cut, and then chamfered the large hole. This removed the need for external machining or manual finishing.

Results

JCB received fully finished parts with shorter lead times, reduced costs and consistently high quality. The streamlined process enabled them to keep pace with production demand.

Request a FREE Plasma Cutting Quote

Add your details below...

Steels We Use For Our Plasma Cutting Services

Hot Rolled & Cold Rolled Structural Steels

Type of Hot Rolled & Cold Rolled Structural Steel	Steel Thickness Plasma Cutting Capabilities
S275JR	3mm – 60mm
S275JR+N	3mm – 60mm
S355JR	3mm – 60mm
S355J2+N	3mm – 60mm
S355K2+N	3mm – 60mm

Wear Resistant & High Strength Steels

Type of Wear Resistant & High Strength Steel	Steel Thickness Plasma Cutting Capabilities
400 Brinell (Various Brands)	3mm – 60mm
450 Brinell (Various Brands)	3mm – 60mm
500 Brinell (Various Brands)	3mm – 60mm
S690 (Various Brands)	3mm – 60mm
700mc (Various Brands)	3mm – 60mm

Weather Resistant Steels

Type of Weather Resistant Steel	Steel Thickness Plasma Cutting Capabilities
S355J2W	3mm – 60mm
S355J2W+N	3mm – 60mm

Medium Carbon Steels

Type of Medium Carbon Steel	Steel Thickness Plasma Cutting Capabilities
EN10083-2 (EN8) 080M40	3mm – 60mm

Offshore Steels

Type of Offshore Steel	Steel Thickness Plasma Cutting Capabilities
S355G8+N	3mm – 60mm
S355G10+N	3mm – 60mm
S420G2+M	3mm – 60mm

Pressure Vessel Steels

Type of Pressure Vessel Steel	Steel Thickness Plasma Cutting Capabilities
P265gh	3mm – 60mm
P295GH	3mm – 60mm
P355GH	3mm – 60mm
P275NL2/NL1	3mm – 60mm
P355NL2/NH	3mm – 60mm
P460NL2/NH	3mm – 60mm

Plasma Cutting Technical Data

Metrics	HPR Variables	XPR Variables
Maximum Cutting Length	16 Metres	10 Metres
Maximum Cutting Width	5 Metres	2.5 Metres
Minimum Cutting Thickness	3mm	3mm
Maximum Cutting Thickness	60mm	50mm
Number of Cutting Torches	2 x 460 Amp	1 x 300 Amp
Cutting Standards	BS EN 1090 Execution Class 4,BS 9001	BS EN 1090 Execution Class 4,BS 9001

Plasma Cutting Tolerances

Cutting Tolerances	Guide only as dependent on Job
<40mm	+/-1.5mm
41-60mm	+/-2mm

Plasma Cutting FAQs

What types of steel can be cut using plasma cutting?

We specialise in cutting mild steel, carbon steel and stainless steel in various grades and thicknesses.

How accurate is plasma cutting?

Our CNC plasma cutting delivers high precision with tolerances typically within +/-1.5mm/2mm depending on material thickness.

What are plasma cutting services?

Plasma cutting uses a high-temperature, electrically conductive plasma arc to cut through electrically conductive metals such as carbon and mild steel. The process delivers fast, accurate profile cutting and is particularly effective for both thin and thick plate applications.

Which is better, plasma or laser cutting?

Plasma cutting is generally better for thicker materials and cost-effective production, while laser cutting is better suited to thinner metals where a higher level of precision and edge finish is required.

What cannot be cut with a plasma cutter?

A plasma cutter cannot cut non-conductive materials such as wood, plastic, glass, ceramics or composites, as the process relies on an electrical arc to cut electrically conductive metals only.

How thick can plasma cutters cut?

Depending on the machine and power output, plasma cutters can typically cut metal from thin sheet up to around 60mm thick, with industrial systems capable of cutting even thicker materials.

Other Services We Offer

Supporting our HD plasma cutting services, we also can support you with these applications:
