Accurate Bevelling & Chamfering for Welding Preparation

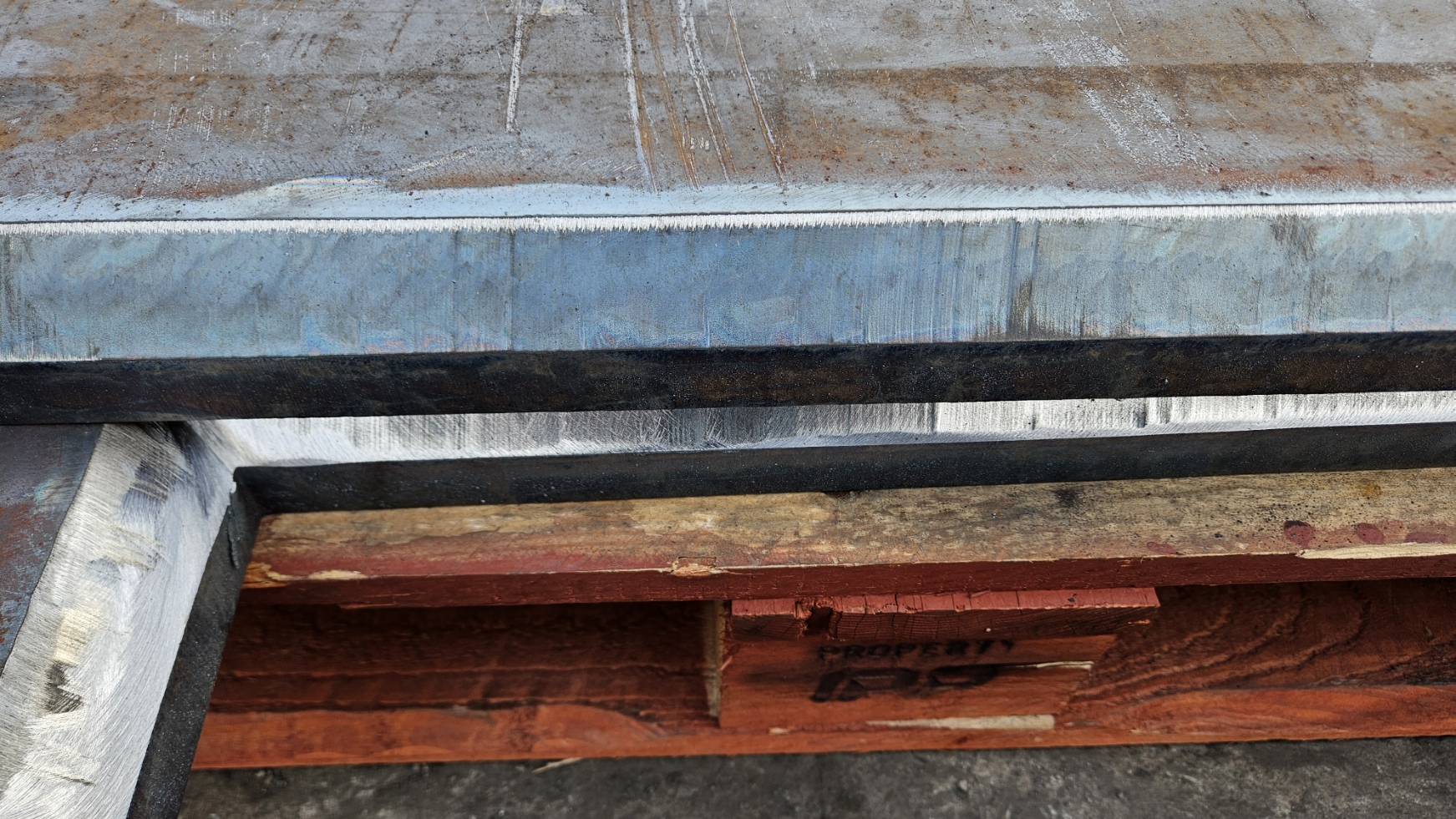

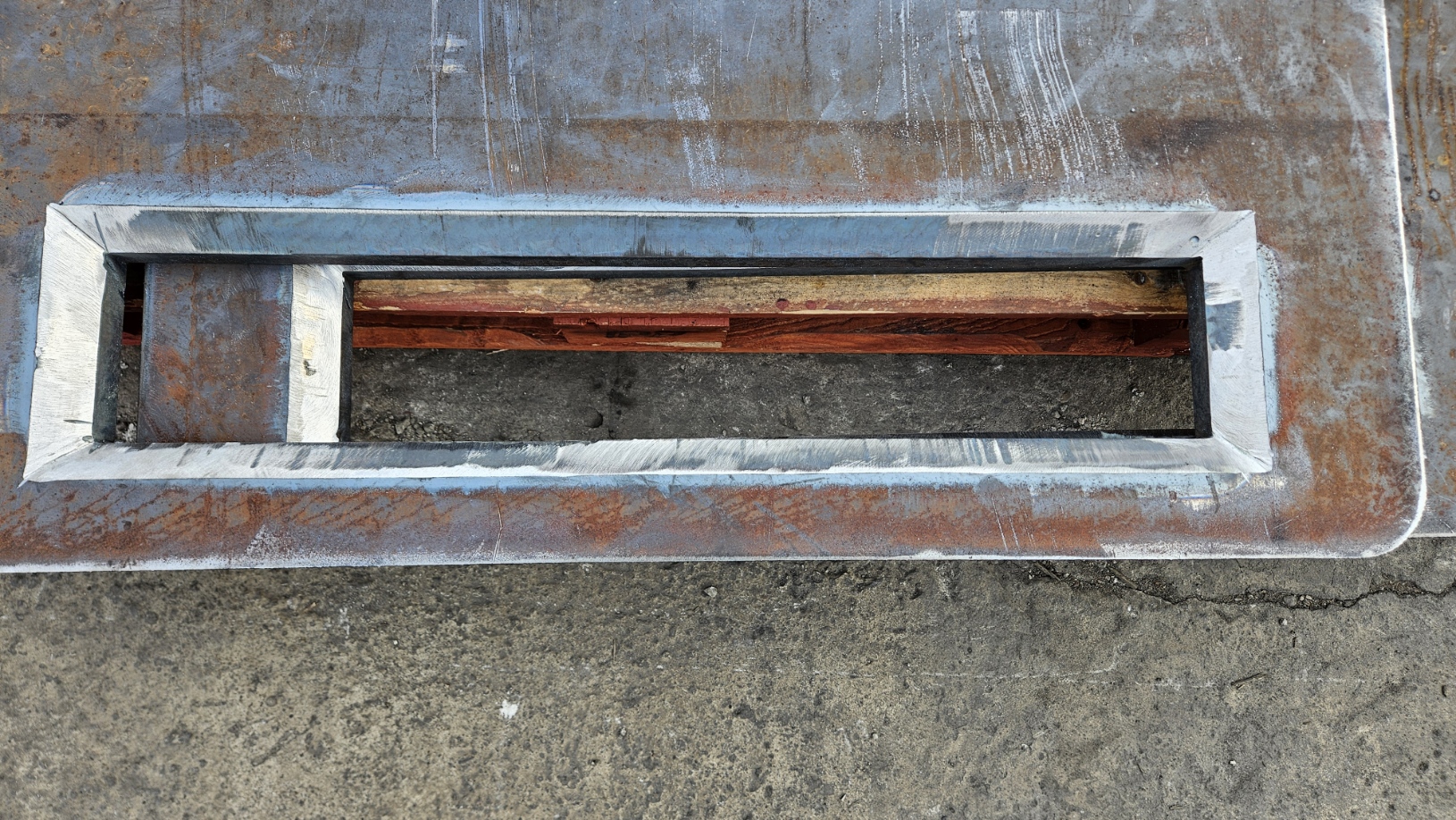

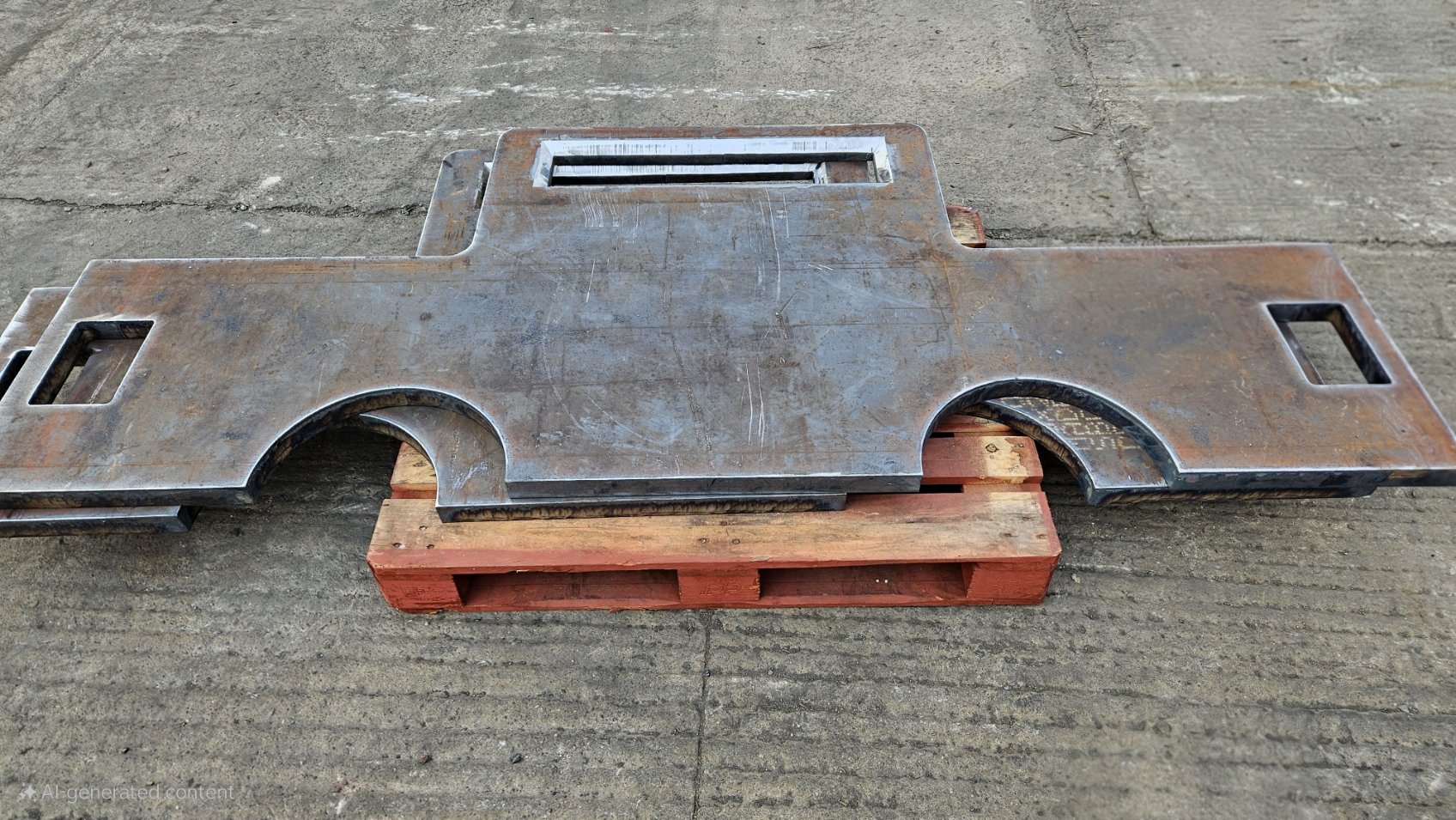

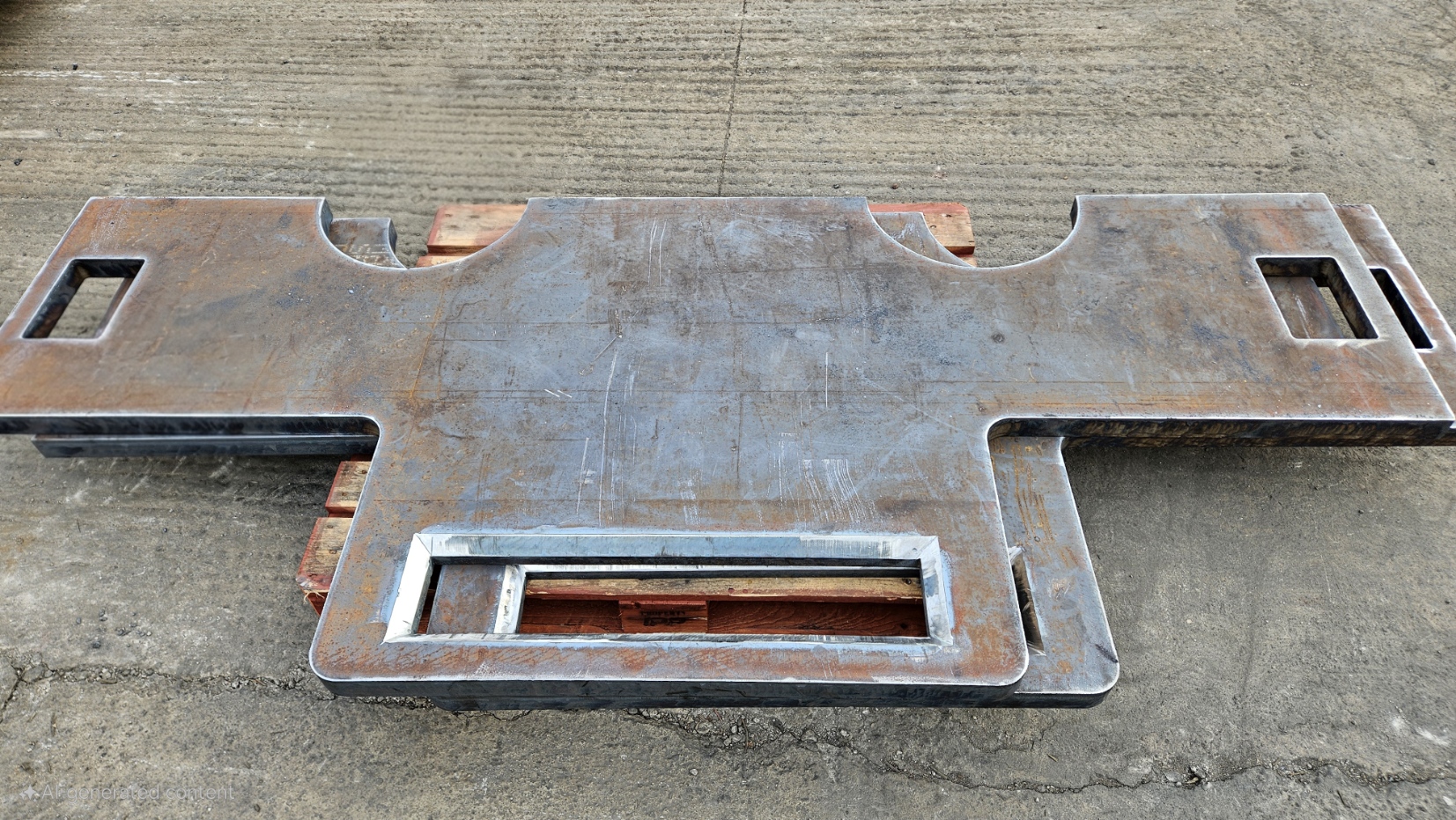

At RMP Products, we provide expert bevelling and edge chamfering services, producing modified edges that offer improved functionality for assembly and welding, along with a clean, high quality aesthetic finish. Working with profile cut steel, we deliver consistent, accurate bevels and chamfers tailored to your exact requirements, whether you need dependable edge chamfering for large structural components or precise steel bevelling for smaller assemblies.

Our bevelling and chamfering services utilise a wide range of equipment, from advanced CNC machinery to plasma bevel heads, ensuring excellent accuracy with tolerances of +/- 3mm.

From the early planning stages of your project, it is essential to have confidence that your steel profiles will arrive ready for welding, assembly or finishing. Our bevelling and chamfering services provide that assurance. Backed by ISO 9001:2015 and EN 1090 Execution Class 4 certification, we guarantee a consistently high level of quality across all weld preparation services.

Request a Quote

What Makes Us Different for Edge Chamfering Services?

Thickness & Angle Range

With the capability to bevel and chamfer steel from 3mm to 300mm in thickness and angles up to 30°, we can support a wide range of projects while ensuring high quality weld preparation.

Advanced Equipment

With top of the range plasma, flame and CNC machinery, we deliver accurate, modified edges for projects of any size. Plasma bevel head tolerance is ±3mm, oxy fuel chamfering tolerance is ±2mm and CNC vertical machining tolerance is ±0.15mm.

Multi-Service Operation

If profile cutting or steel machining is required prior to chamfering, we provide a fully in house service where cutting and chamfering work seamlessly together. This saves time and cost while maintaining accuracy throughout the process.

Tailored Bevelling & Chamfering Solutions

We offer both top face and bottom face solutions across a wide range of steel grades, giving you complete flexibility regardless of the application.

Bevelling, chamfering or weld prepping involves cutting an angle into the edge of a steel plate, typically to remove the 90-degree corner. This prepares the material for welding by allowing a stronger joint to be formed. Weld prep services are especially important in sectors where structural integrity and reliability are essential, such as construction, infrastructure, offshore and heavy engineering.

Industries For Bevelling and Edge Chamfering Services

Different industries have different requirements when it comes to edge preparation, and that is exactly what we deliver. Our bevelling and edge chamfering services are tailored to suit a wide range of applications, including:

Construction: Preparing thick steel plates, beams, and columns for welding, ensuring strong, deep-penetration joints for critical infrastructure like bridges and buildings.
Oil & Gas: Bevelling pipe ends to precise angles to support high integrity, leak proof welding in pipelines, pressure vessels and reactor systems.
Shipbuilding & Aerospace: Providing accurate weld preparation on metal plates to maintain structural integrity and reduce the risk of leaks in marine vessels and aircraft components.
Automotive: Manufacturing specialised components such as bevel gears to support efficient power transfer while reducing friction and wear.

Request a FREE Bevelling & Chamfering Quote

Add your details below...

Edge Bevelling & Chamfering Options and Technical Data

Process	Capability	Max Length	Max Thickness	Tolerance

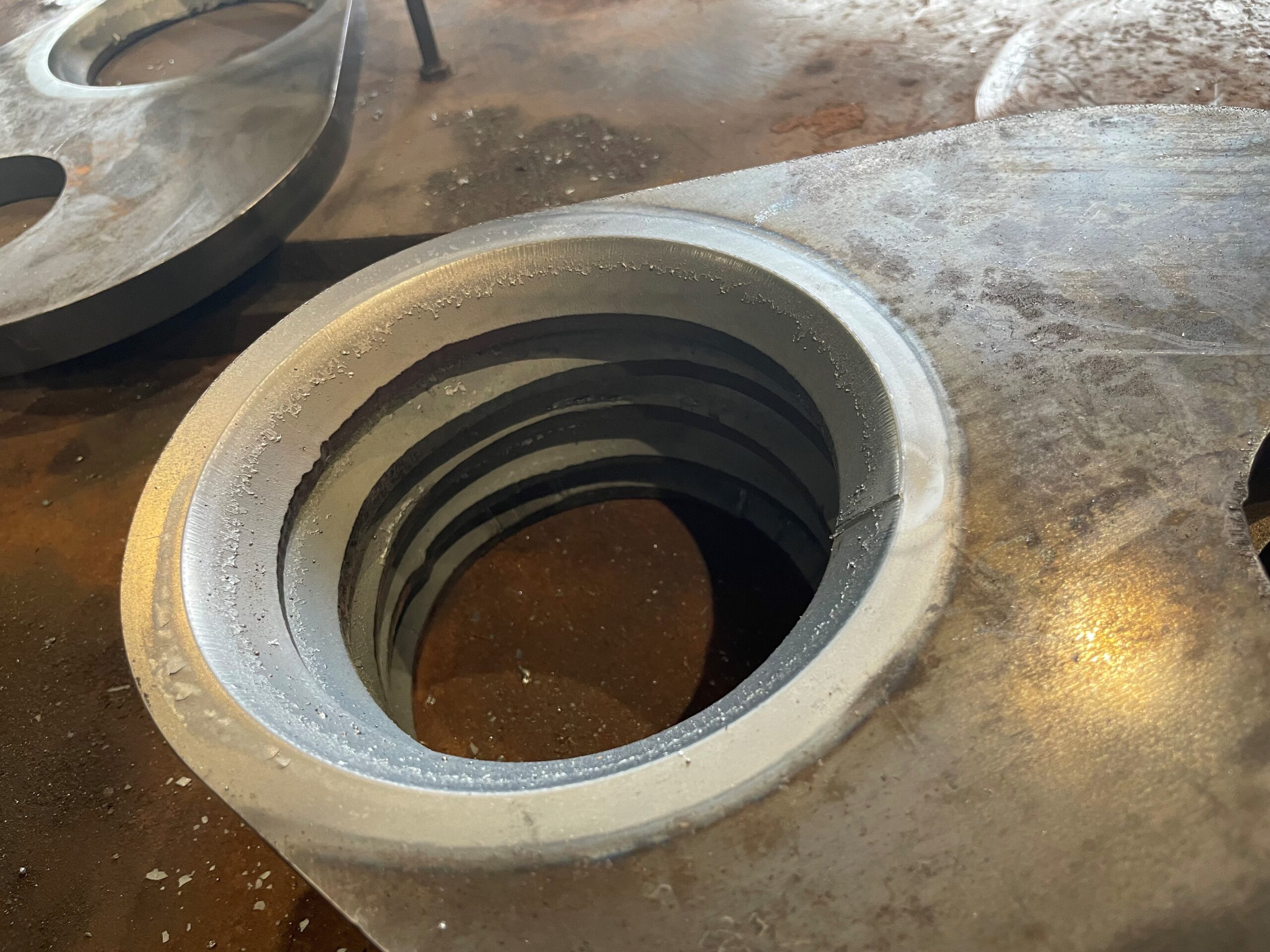

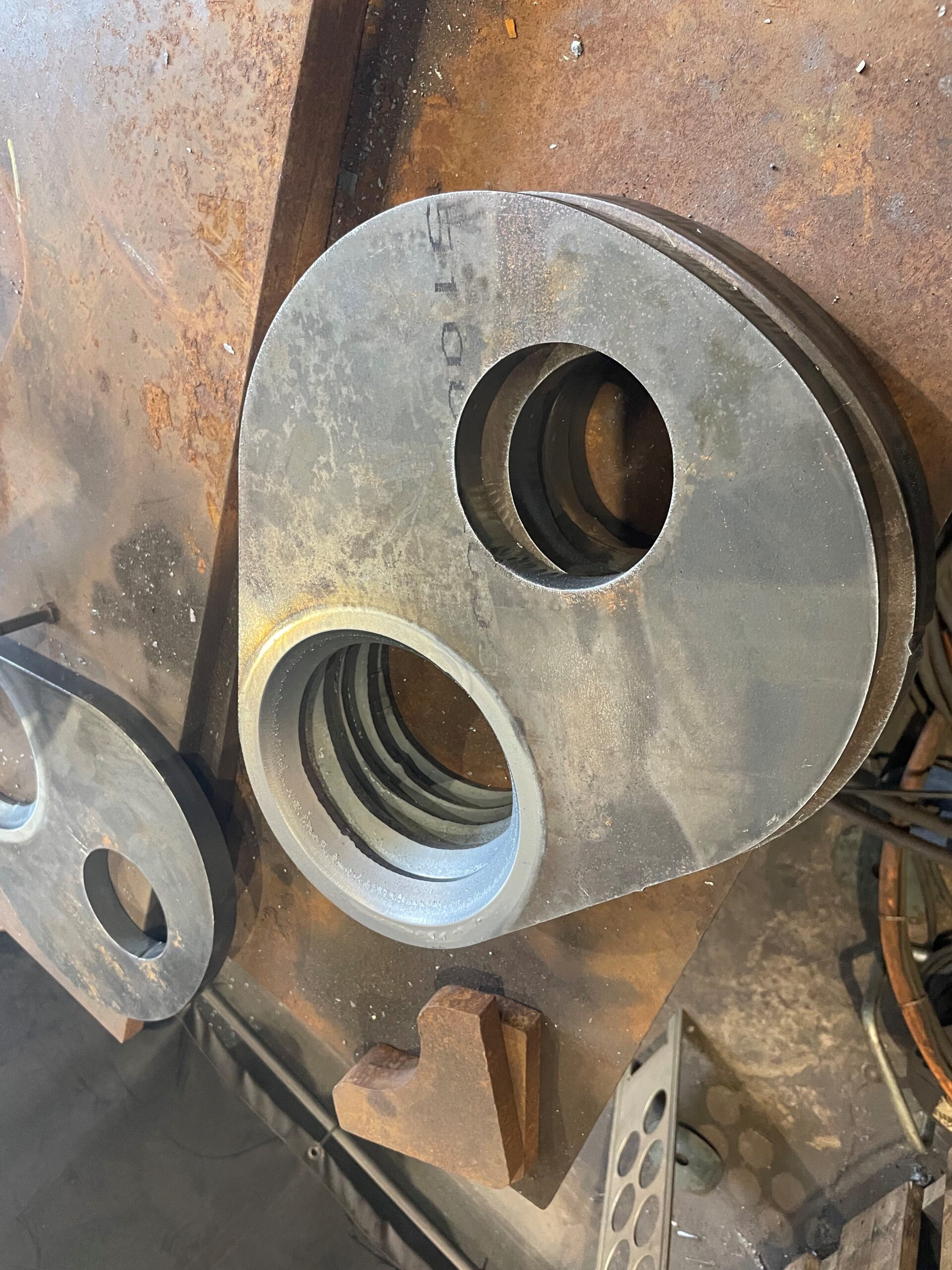

Plasma Bevel Head	Counter chamfering and internal radius chamfering	7 metres	40mm	+/- 3mm
Oxy Fuel Chamfering	Large straight weld preps	10 metres	200mm	+/- 2mm
CNC Vertical Machining	Contour chamfers and milled edges	1810mm	25mm at 30°	+/- 0.15mm

Other Services We Offer

FAQs for our Edge Chamfering & Steel Bevelling Services

What materials can you bevel or chamfer?

We specialise in steel bevelling services and work with a wide range of steel grades. Whether you need chamfering for mild steel, structural steel or bespoke steel profiles, our machinery and expertise ensure precise, high-quality results every time.

What are the typical thickness and angle ranges you can work with?

We can deliver weld preps and chamfers on plates from 3mm up to 300mm thick, with angles of up to 30 degrees, depending on the technology used. We offer both top-face and bottom-face chamfering to suit your requirements.

What is the lead time for your bevelling and chamfering services?

Lead times vary depending on the size and complexity of your project. However, with in-house equipment and efficient processes, we aim to offer fast turnaround times, especially for time-sensitive fabrication jobs.

Can you provide bevelling as part of a larger profiling or machining job?

Yes, our bevelling and chamfering services are often combined with cutting, drilling and machining, offering a complete steel profiling solution. This integrated approach saves time and ensures consistency across your finished components.

Do you offer nationwide delivery?

Absolutely. All of our bevelled and chamfered steel components are manufactured at our West Midlands facility and can be delivered across the UK, Scotland and Ireland using our trusted distribution network.
